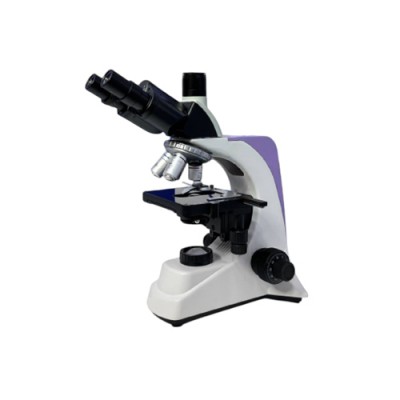

PSAW-4T RESEARCH TRINOCULAR MICROSCOPE
- Optical System: Finite Optical System.
- Stand: Single Mould Sturdy Aluminum Die-cast Stand (Anti-Rust) Body.
- Viewing Head: Siedentopf Trinocular Head 30° Inclined 360° Rotatable, IPD 48-75mm With Diopter Adjustment.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 18mm & 10x, F.O.V 20mm (Optional), Antifungal & Anti-reflection Coated.
- Nosepiece: Forward Quadruple Revolving Nosepiece With Click Stops Mechanism and Rubber Grip.
- Magnification: 40x To 1000x.
- Objectives: Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL).
- Mechanical Stage: Double Plate Graduated Stage Size 140mm x 140mm, X/Y Travel Range 90mm X 65mm. Scratch-Resistant, Double Specimen Holder Clip.
- Focusing: Co-axial Coarse And Fine Focusing With 0.2mm/rotation.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue.
- Illumination: 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
PSAW-4T Research Trinocular Microscope
| Model Name/Number | PSAW-4T |
|---|---|
| Magnification | 1000x |
| Is It Portable | Non Portable |
| Brands | PSAW |
| Focusing | Co-axial Coarse And Fine Focusing With 0.2mm/rotation. |
| Power | 220V |
| Warranty | 1 YEAR |
| Mechanical Stage | 140mm x 140mm |
| Weight | 5KG |
| Condenser | Movable Abbe Condenser |
| Eyepieces | Wide Field 10x, F.O.V 18mm & 10x, F.O.V 20mm |
| Country of Origin | Made in India |
| Objectives | Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL) |
