Product Information

TECHNICAL PARAMETERS:-

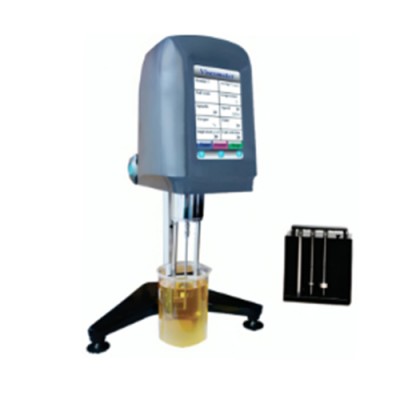

MODEL	PSAW-7310
Measuring range	20-2,000,000 (mPa.s).
RPM	0.3, 0.6, 1.5, 3, 6, 12, 30, 60.
No of standard spindles	#1, #2, #3, #4 is standard configuration
Measuring accuracy	±1.0% of range.
Repeatability	±0.5%.
Display	LCD Touch Screen.
Temperature RTD Monitoring
Sensor probe	Yes.
Output	RS 232 Interface.
Power supply	AC 220V / 50Hz.
Dimension L x W x H (mm)	400 x 350 x 360mm.
Weight	9 kg.

STANDARD ACCESSORIES:-

• Ascending and falling rack. 1 Set
• Protective frame of rotor. 1 No.
• No. (1,2,3,4 each)
• Power adapter. 1 No.
• 1 No.
• Screw diver. 1 No.
• 1 Set
