Product Information
TECHNICAL PARAMETERS:-
Model
PSAW-2202
Function
Basic, wavelength scan, muPSAWi wavelength, kinetics, quantitative, DNA / protein.
Wavelength range
190-1100nm
Spectral bandwidth
1.0nm
Optical system
Double beam, grating 1200 lines/mm
Wavelength accuracy
±0.1nm
Wavelength repeatability
±0.1 nm
Scanning speed
High, medium & low, maximum 3600 nm/min
Photometric accuracy
± 0.3 %T or ± 0.002 a/h@1a
Photometric range
%T - 200%, Abs : -0.3 to 3a, Conc. 0-9999 C.
Stray light
<0.03%T@ 220 & 360nm
Stability
±0.001 A/h @ 500 nm
Display
7“ TFT colour screen
Baseline flatness
±0.001a/h (200-1000nm)
Sample compartment
8 cell holder automatic cell changer 10mm path length.
Light source
Halogen & deuterium lamps ( Pre - aligned )
Output ports
USB drive, USB host & RS232.
Power
230 V ± 10% AC, 50 Hz.
Dimensions (L x W X H)
Instrument - 810 x 660 x 390 mm (approx.)
Weight
Instrument - 27.0 Kg. (approx.)
STANDARD ACCESSORIES:-
- Quartz Cuvettes- A set of 2.
- Glass Cuvettes- A set of 4.
- Instruction Manual.
- Software CD & manual.
- USB data cable for PC connectivity.
- Mains lead.
- Dust cover.

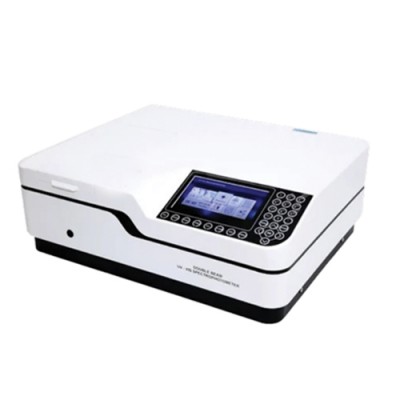

Double Beam Uv-vis Spectrophotometer 8cell Holder
-
DOUBLE BEAM UV-VIS
SPECTROPHOTOMETER 8CELL HOLDER
-
SALIENT FEATURES:-- Double beam optics.
- 7“ TFT colour screen.
- Auto wavelength setting
- On-screen standard and kinetic curve display.
- Tungsten/deuterium lamp can be turned on/off individually to extend lifetime.
- Application software provides complete control of the instrument from a computer through the buiPSAW-in-USB port.
- Basic, wl scan, muPSAWi-wavelength, kinetic, quantitative, DNA /protein modes.
- Pre-aligned design makes it convenient to change lamps.
- 8 position auto cell changer of 10mm path length provided.
