Product Information
TECHNICAL PARAMETERS:-
Model
PSAW-2205
Function
Basic, wavelength scan, muPSAWi wavelength, kinetics, quantitative, DNA / protein.
Wavelength range
190-1100nm.
Spectral bandwidth
1 nm.
Optical system
Double beam, grating 1200 lines/mm.
Wavelength accuracy
± 0.1 nm.
Wavelength repeatability
± 0.1 nm.
Scanning speed
High, medium & low, maximum 3600 nm/min.
Photometric accuracy
± 0.3 %T or ± 0.002 A/h@1a.
Photometric range
%T - 200%, Abs : -0.3 to 3A, Conc. 0-9999 C.
Stray light
< 0.03% @ 220nm & 360 nm.
Stability
± 0.001 A/h @ 500 nm.
Display
10.1 Inches coloured touch screen
Baseline flatness
±0.001a/h (200-1000nm).
Sample compartment
2 cell with automatic cell changer -10mm path-length.
Light source
Halogen & deuterium lamps ( Pre - aligned ).
Printer Interface
Parallel port for dot matrix.
PC Connectivity
USB Port for PC Connectivity.
Power
230 V ± 10% AC, 50 Hz.
Dimensions (L x B X H)
Instrument – 810x 660 x 390 mm (approx.)
Weight
Instrument - 27.0 Kg. (approx.)
STANDARD ACCESSORIES:-
- Quartz Cuvettes- A set of 2.
- Glass Cuvettes- A set of 4.
- Instruction Manual.
- Software CD & manual.
- USB data cable for PC connectivity.
- Mains lead.
- Dust cover.

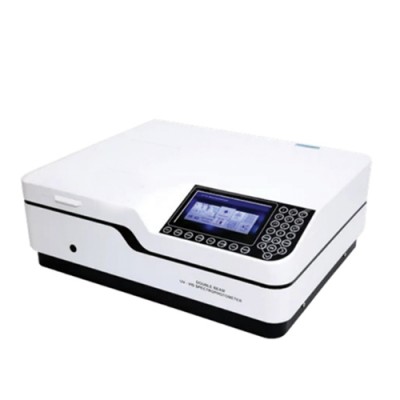

Double Beam Uv-vis Spectrophotometer Touch Screen
-
DOUBLE BEAM UV-VIS
SPECTROPHOTOMETER TOUCH SCREEN
SALIENT FEATURES:-
- Double beam optics.
- 1 Inches Colored Touch Screen
- Auto wavelength setting at 0.1nm interval.
- On-screen standard and kinetic curve display.
- Tungsten/deuterium lamp can be turned on/off individually to extend lifetime.
- Application software provides complete control of the instrument from a computer through the buiPSAW-in-USB port.
- Basic, wl scan, muPSAWi-wavelength, kinetic, quantitative, DNA /protein modes.
- Pre-aligned design makes it convenient to change lamps.
