Microprocessor Flame Photometers

Home Microprocessor Flame Photometers

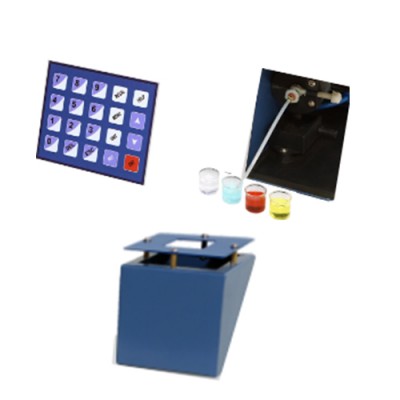

Microprocessor Flame Photometers

Model No: PSAW-671/672

MICROPROCESSOR

FLAME PHOTOMETERS

SALIENT FEATURES:-



  • Auto Gas Cutoff Facility.
  • Auto Flame Failure Detection Facility.
  • InbuiPSAW Thermal Printer(In Model 672).
  • µP Based with printer interface.
  • Five Element Measurement in Single Aspiration of the Sample.
  • Curve Calibration Programmability using Maximum of 25 Standards.
  • Data Processing Through Curve Fitting Techniques Least Squares, Quardratic.
  • MuPSAWiple Calibration Curves Saving Facility.
  • Sample Data Storage Facility.
  • Online Help Key.
  • Printer Attachment Facility.
  • Measurement in ppm & meq.
  • Useful For Both Medical & Soil Testing Applications.
  • Setup Storage Facility up to 10 setups Files.
  • Supplied with Compressor Unit.

RANGE:-

General Range Serum Range Urine Range

ppm meq1 meq/I

Na : 0-100 0-200 meq /I 1:100 dii. 0-250 meq/I, 1-100 dil

K : 0-100 0-10 meq/l, 1:100 dil. 0-100 meq/I, 1-100 dil.

Ca : 0-100 0-10 meq/l, 1:2 dil.

Li : 0-100 0-2 meq/l, 1:5 dil.

Ba : 30-3000 ( all meq values are claimed with appropriate dilution)

Enquire Now

Product Information

TECHNICAL PARAMETERS:-

MODEL

PSAW-671/672

SENSITIVITY

General Mode: Na: 0.5ppm, K: 0.5ppm, Li: 0.5ppm, Ca:15ppm Ba: 30ppm

FIPSAWERS

Na & K supplied (Ca, Li & Ba are optional at extra cost) {Factory Fitted only}

RESOLUTION

0.1 ppm/0.1 meq.

REPRODUCIBILITY

<1% coefficient of variation for 20 consecutive samples using 10 ppm Na set as maximum standard up to 3% CV for 20 Consecutive samples of concentrations between 50 to 199 ppm for Barium

LINEARITY

<2% error when 3 ppm Na/K and 5 ppm Li are set as Maximum std.

CURVE FIT ACCURACY

+2% of FS.

DISPLAY

128 * 64 Graphical LCD

AVERAGE TIME

In-buiPSAW in Software.

FLAME SYSTEM

LPG & DRY Oil Free Air.

DETECTOR

Photodiode.

CALIBRATION

With up-to 25 standards of user choice with curve fitting software (5 of each element). MuPSAWiple calibration curves can be stored in the memory.

GAS CONTROL

Adjustable with knob

ASPIRATION TIME

3ml per Minute

FLAME FAILURE

Auto Detection

GAS CUT-OFF

Automatic

IGNITION SYSTEM

Auto Ignition

AUTOMISER

Axial Flow Type

DIMENSIONS

Instrument : 365 x 245 x 220mm Approx. ( L x B x H )

PRINTER

Provision for Attachment of DOT-Matrix Printer with Centronics parallel interface

PC INTERFACE

USB

WEIGHT

 Main Unit : 8 kg Approx.

POWER SUPPLY

230 VAC ± 10% 50 Hz.

STANDARD ACCESSORIES:-

  • Air Compressor.
  • Sample Beakers.
  • Instruction Manual.
  • Air & Gas Tubing.
  • USB Cable.
  • Mains Lead.
