Descriptions:

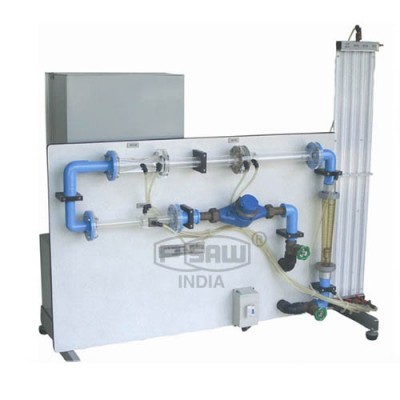

• The equipment consists of a Venturi meter, variable area meter and orifice plate, installed in a series configuration to permit direct comparison.
• A hand pump facilitates pressurization of the manometers.
• A flow control valve permits variation of the flow rate through the circuit.
• Pressure tappings are incorporated so that the head loss of each flow meter may be measured.
• The circuit and manometer are attached to a support framework, which stands on the working top of the Hydraulics Bench.
• The bench is used as the source of water supply and for volumetrically calibrating each flow meter.

Specification:

• Manometer range: 0 to 500 mm. of water column
• Number of monomeric tubes: 8
• Upstream pipe diameter: 32 mm
• Downstream taper: 21
• Upstream taper: 14
• Flow meter: 2 to30 l./min

Venturi dimensions:

• Throat diameter: 20 mm
• Orifice plate diameter: 25 mm

Orifice Plate dimensions:

• Upstream pipe diameter: 35 mm.
• Downstream orifice diameter: 19 mm.
