Product Information
Description

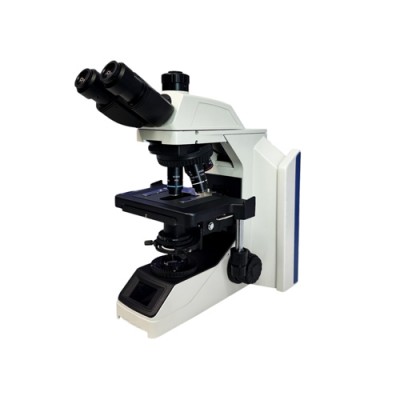

PSAW-700 RESEARCH TRINOCULAR MICROSCOPE
- Optical System: Infinity Optical System.
- Stand: Single Mould Sturdy Y-Shaped Aluminum Die-cast Stand (Anti- Rust) Body.
- Viewing Head: Siedentopf Trinocular Head 30° Inclined 360° Rotatable, IPD 48-75mm With Diopter Adjustment.
- Eye Guards: Adjustable Rubber Eye Guards For Comfortable Viewing.
- Eyepieces: Wide Field 10x, F.O.V 22mm With +/-5 Diopteric Adjustment, Antifungal & Anti-reflection Coated.
- Nosepiece: Inward Quintuple Nosepiece With Coded Feature, Click Stops Mechanism And Rubber Grip.
- Objectives: Infinity Plan Achromatic 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 Oil (SL) (2x, 20x/0.50 Optional).
- Mechanical Stage: Double Plate Graduated Stage Size 235mm X 150mm, X/Y Travel 78mm X 54mm, Rack Less, Scratch-resistant, Double Specimen Holder Clips.
- Focusing: Coaxial Coarse And Fine Focusing. With Fine Adjustment Scale Value 0.002mm.
- Condenser: Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphragm With Frosted White/Blue.
- Illumination: 3W LED Light (Up To 100,000 Working hours) with Intensity Controller.
- Display: LCD Display Magnification, Time Sleeping, Brightness Indication And Lock ,etc.
- Power: Universal Power Supply 110v-240v Integrated With Voltage Flux Stabilizer.
PSAW-700 Research Trinocular Microscope
| Magnification | 1000x |
|---|---|
| Is It Portable | Non Portable |
| Warranty | 1 YEAR |
| BRANDS | PSAW |
| Mechanical Stage | 235mm X 150mm |
| Illumination | 3W LED Light |
| Power | 110v-240v |
| Eyepieces | Wide Field 10x, F.O.V 22mm |
| Model Number | PSAW-700 |
| Condenser | Movable Abbe Condenser, N.A. 1.25 Anti Fungal, Anti Reflection With Aspheric Lens, Iris Diaphrag |
