Product Information
Description
SPECIFICATIONS:
Viewing Head: 30/45 degree head Inclined and 360° rotatable
Interpupillary adjustment of 55mm-75mm
Eyepiece: Wide field (WF)10x/18mm, diopter adjustment on right eyepiece Nosepiece: Revolving quadruple objective nosepiece Non-stress Objectives: Achromatic DIN 4X/0.10 160/0.17 WD 37.5mm
Achromatic DIN 10X/0.25 160/0.17 WD 7.316mm
Metallurgical Plan Achromatic DIN 40XR/0.65 160/0 WD
0.66mm (Retractable)
Achromatic DIN 60XR/1.25 160/0.17 WD 0.32mm (Retractable)Focusing System: Low position coaxial coarse and fine focus knobs on both sides Stage: Double layers mechanical stage: 125x125mm, X-Y moving
range: 75x30mm
Transparent stage 133x160mm, transparent area 65x85mmIllumination: Focusable N.A. 1.25 Abbe condensers, Ø2-Ø30mm adjustable
aperture iris diaphragm with Ø32 filter
5w LED reflected light; 5W LED transmitted light, with light
intensity control

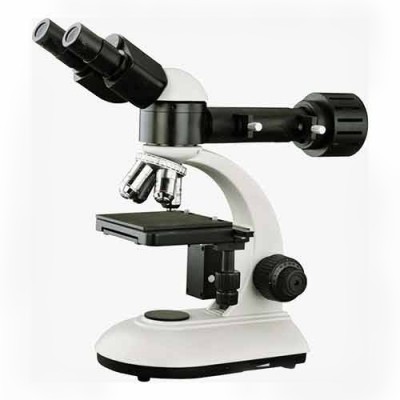

Upright Metallurgical Microscope PSAW-300
Viewing Head: 30/45 degree head Inclined and 360° rotatable
Eyepiece: Wide field (WF)10x/18mm, diopter adjustment on right eyepiece
Stage: Double layers mechanical stage
